Manufacturer and Developer of Die Height Indicators / Special Counting Scales

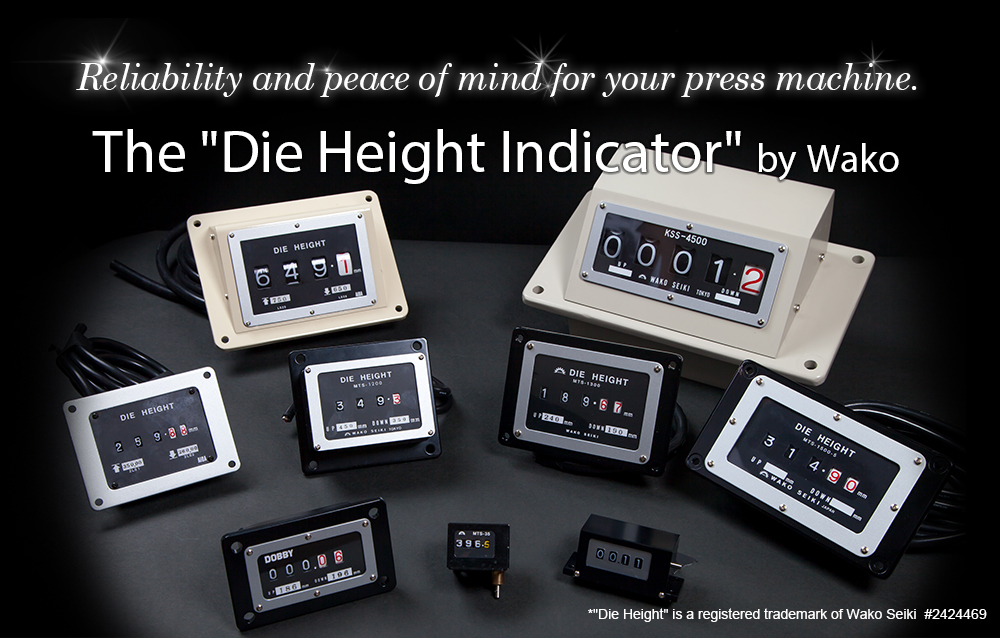

Reliability and peace of mind for your press machine. The Die Height Indicator by Wako.

A Die Height Indicator with diverse applications

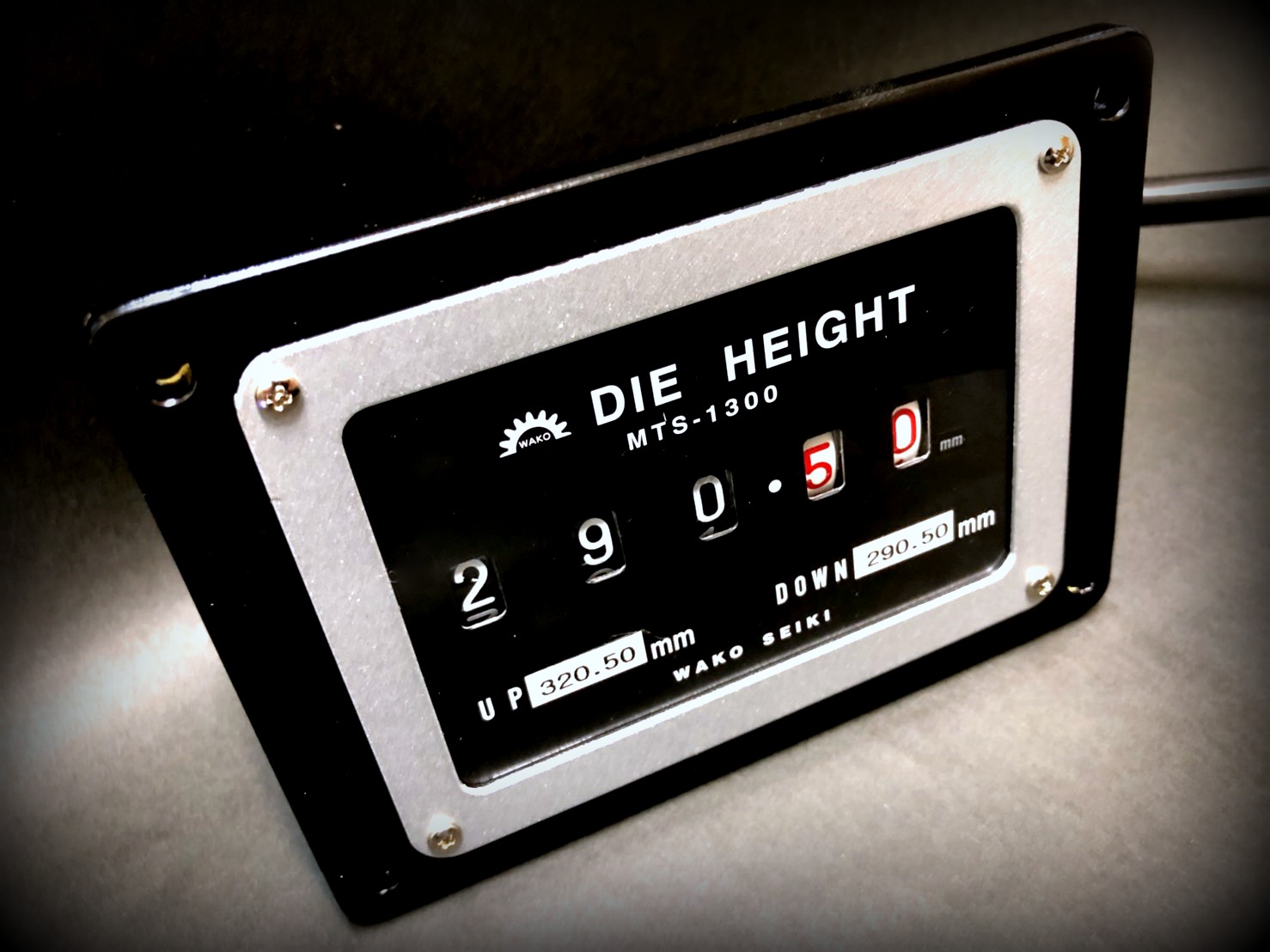

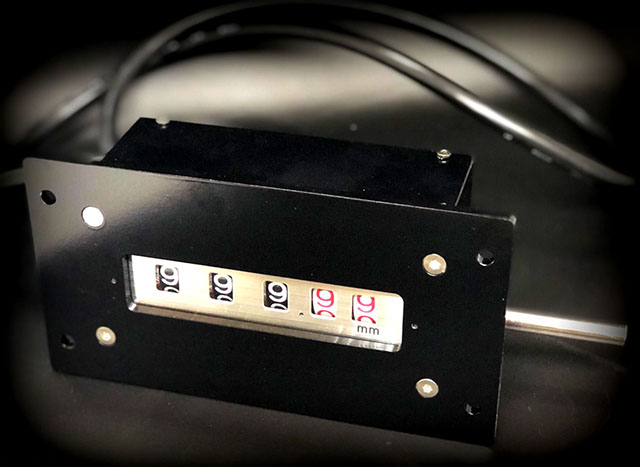

The Wako Seiki Die Height Indicator

Wako seiki Co., Ltd. has developed a die height indicator that can respond to sophisticated machine precision and mold accuracy in recent years.The developed TYPE-D has been able to set up mechanisms in 0.1 mm increments until the upper limit / lower limit switch setting was only a positive number up to now.(4 digit specification · 5 digit specification)
Compatible models,(MTS-1100、MTS-120、MTS-1300、MTS-145、MTS-1500、MTS-2500、MTS-190)


A Die Height Indicator with diverse applications

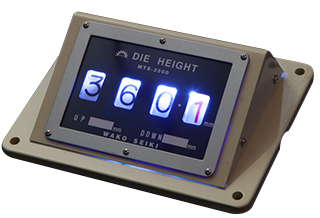

The Wako Seiki Die Height Indicator

The Wako Seiki Die Height Indicator is mainly used as a piece of equipment in the positioning of metal molds on the press machine. Additionally, it is used in a variety of applications, such as a servomotor, brakemotor, feeder, pressure meter, control motor, counter for back gauge use (vendor, shirring), LED counter for low-light use, feed length counter, counter for grip coefficients, and a thickness display counter. With much anticipation for 2015, we plan on selling this Hybrid Absolute Encoder.


Moving Wako forward to meet continuing global standard

Moving Wako forward to meet continuing global standard

It would not be an exaggeration to say that our products are at war with the vibrations of the press machine.
In particular, for high speed press machines, vibrations occur at extremely high intervals of 300SPM~4000SPM.
Since it is a simple mechanism, in order to keep control, it is necessary for someone to fine tune each part by hand. We can do this specifically because we are a manufacturing company that specializes in press machine counters.
Our acquired experience and know-how is recognized by companies in the industry, and we are trusted for our products' technology, quality, and abilities. As the only company producing the "Die Height Indicator", Wako Seiki provides reliability and peace of mind for your press machine, and is advancing and contributing to the world by manufacturing great products through daily innovations.


About the Die Height Indicator

Figure 1 Press Machine Die Height

What is die height?

Die Height is the distance from the top to the bottom of the slide when the adjustment of the slide is set to the limit at the bottom dead center.

What is shut height?

Shut height is the distance from the top to the bottom of the head surface when the bolster plate is removed from the slide at the bottom dead center.

What is open height?

Open height is the distance from the bottom of the slide to the top of the bolster when the adjustment of the slide is set to the limit at the bottom dead center.

Slide adjustment amount

During metal mold mounting, the connecting rod and slide adjustment screw (connecting screw) adjust the vertical positioning of the slide.
The mounted mold’s range of motion and height is set by the amount of the adjustment.

What is a Die Height Indicator?

The Die Height Indicator is used when these adjustments are made.
The maximum and minimum settings at the time of molding are decided through this device.

1.Scope

This standard indicates the die height value (made by Wako Seiki Co., Ltd.) to be used for the press.

2.Model and variety

The model of the die height value is as shown, and the variety depends on the combination of the components below.

*Example 1 *Example 2

(1)Basic model

MTS-1100,1200,1300,1500,2500,2800,4500
*For AIDA specs:MTS-1100=MTS-120,MTS-1300=MTS-145,MTS-2500=MTS-190
*No limit switch type:MTS-35,MTS-45,MTS-150

(2)Drive system
Variety based on drive connection system Symbol
Shaft system S
Flexible shaft system F
Square key system Q

*Special S system・・・SK(with kerf)・S+PIN(PIN attached)

(3)Rotation system
Variety based on rotation direction Symbol
Numbers increase from right rotation when viewed from front R
Numbers increase from left rotation when viewed from front L
(4)Display units and number of digits
Display units Variety Symbol
Millimeter display 4 digits ☐☐☐.☐ 4
5 digits ☐☐☐.☐☐ 5
5 digits ☐☐☐☐.☐ 4.1
Inch display 5 digits ☐☐.☐☐☐ 5inch
(5)Rotation display comparison
Number of digits Rotation display comparison Model
4 digits 1 rotation 0.1 change Standard
5 digits 1 rotation 0.10 change Standard
5 digits(4.1) 1 rotation 0.1 change Standard

*Rotation display comparison ... Possible specialty specs.
(Example: 1 rotation 0.2, 1 rotation 0.05...)

(6)Rotation speed
Model Maximum rotation speed
MTS-1100 1000rpm or less
MTS-1200 1000rpm or less
MTS-1300 1000rpm or less
MTS-1500 1000rpm or less
MTS-2500 700rpm or less
MTS-2800 300rpm or less
MTS-4500 300rpm or less
(7)Unload preset symbol

First digit is always free, two characters of the second digit are free One character of digits 3 and 4 is free and when all digits are free at the same time, the micro switch turns off.

3.Circuit structure, micro switch number, wiring color

Omron V-15-1E6 AC250V-15A
Mitsuboshi 300V soft vinyl cabtire VCT

(1)Circuit structure

Circuit structure

(2)Preset

We designate the preset value, set it in-house and deliver.
In this instance, since the preset does not take the highest and lowest structural digits, we designate values excluding these digits. The highest upper preset value is consistent with the value indicated in the chart, and the lowest value comes from subtracting one from the value indicated in the chart.

(Example)Die height400㎜/Slide adjustment, if 100mm
(400-300)displays, and device turns on at a highest limit preset symbol of 400.0, and the lowest of 299.0


Die Height Indicator Model List

※The dimensional chart (PDF) is password protected. If you wish to view the chart, please send a request with your desired product model number using the form below.
Once we have confirmed your request, a password will be sent to the email address you provide.

Model Image Digits Drive
type
Rotation
direction
Rotation
display ratio
Height x width Set number
of digits
Notes Dimension
chart
MTS-1100-4 4 S/F/Q L/R 1 rotation/0.1㎜ 90×120㎜ 3 digit PDF
MTS-120-4(AIDA) MTS-120-4(AIDA) 4 F/Q L/R 1 rotation/0.1㎜ 90×120㎜ 3 digit
MTS-1100-5 5 S/F/Q L/R 1 rotation/0.10㎜ 90×120㎜ 3 digit *shake-proof type PDF
MTS-120-5(AIDA) MTS-120-5(AIDA) 5 F/Q L/R 1 rotation/0.10㎜ 90×120㎜ 3 digit *shake-proof type
MTS-1200-4 MTS-1200-4 4 S/F/Q L/R 1 rotation/0.1㎜ 90×120㎜(70×90㎜) 3 digit PDF
MTS-1200-5 5 S/F/Q L/R 1 rotation/0.10㎜ 90×120㎜(70×90㎜) 3 digit *shake-proof type PDF
MTS-1200-4.1 MTS-1200-4.1 5 S/F/Q L/R 1 rotation/0.1㎜ 90×120㎜(70×90㎜) 4 digit *special specs PDF

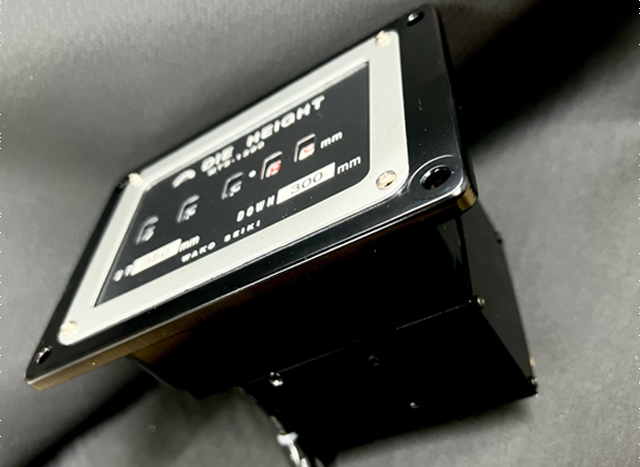

MTS-1300-4 MTS-1300-4 4 S/F/Q L/R 1 rotation/0.1㎜ 103×145㎜ 3 digit PDF
MTS-145-4(AIDA) MTS-145-4(AIDA) 4 F/Q L/R 1 rotation/0.1㎜ 103×145㎜ 3 digit
MTS-1300-5 MTS-1300-5 5 S/F/Q L/R 1 rotation/0.10㎜ 103×145㎜ 3 digit *shake-proof type PDF
MTS-145-5(AIDA) MTS-145-5(AIDA) 5 F/Q L/R 1 rotation/0.10㎜ 103×145㎜ 3 digit *shake-proof type
MTS-1500-4 4 S/F L/R 1 rotation/0.1㎜ 103×180㎜ 3 digit PDF
MTS-1500-5 MTS-1500-5 5 S/F L/R 1 rotation/0.10㎜ 103×180㎜ 3 digit *shake-proof type PDF
MTS-2500-4 MTS-2500-4 4 S/F/Q L/R 1 rotation/0.1㎜ 139×189.5㎜ 3 digit PDF
MTS-190-4(AIDA) MTS-190-4(AIDA) 4 F/Q L/R 1 rotation/0.1㎜ 139×189.5㎜ 3 digit
MTS-2500-5 MTS-2500-5 5 S/F/Q L/R 1 rotation/0.10㎜ 139×189.5㎜ 3 digit *shake-proof type PDF
MTS-190-5(AIDA) MTS-190-5(AIDA) 5 F/Q L/R 1 rotation/0.1㎜ 139×189.5㎜ 3 digit *shake-proof type
MTS-2500-4.1 5 S/F L/R 1 rotation/0.1㎜ 139×189.5㎜ 4 digit *special specs PDF

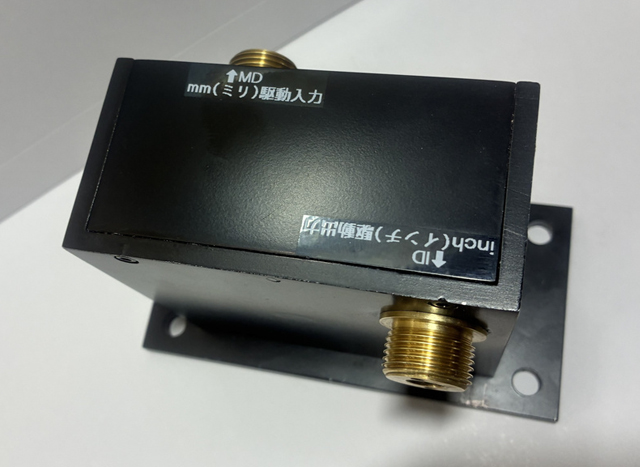

MTS-2500-5(Inch) MTS-2500-5(Inch) 5 S/F/Q L/R Inch display 139×189.5㎜ 3 digit *special inch specs PDF
MTS-190-5(Inch) MTS-190-5(Inch) 5 F/Q L/R Inch display 139×189.5㎜ 3 digit *special inch specs
MTS-2800-4 MTS-2800-4 4 S/F L/R 1 rotation/0.1㎜ 160×255㎜ 3 digit PDF
MTS-2800-5 5 S/F L/R 1 rotation/0.10㎜ 160×255㎜ 3 digit *shake-proof type PDF
MTS-4500-4 4 S/F L/R 1 rotation/0.1㎜ 170×295㎜ 3 digit PDF
MTS-300-4(AIDA) 4 S/F L/R 1 rotation/0.1㎜ 170×295㎜ 3 digit
MTS-4500-5 5 S/F L/R 1 rotation/0.10㎜ 170×295㎜ 3 digit *shake-proof type PDF
MTS-300-5(AIDA) 5 S/F L/R 1 rotation/0.10㎜ 170×295㎜ 3 digit *shake-proof type
MTS-4500-4.1 MTS-4500-4.1 5 S/F L/R 1 rotation/0.1㎜ 170×295㎜ 4 digit *special specs PDF
MTS-300-5(Inch) 5 S/F L/R Inch display 170×295㎜ 3 digit *special inch specs
MTS-4500-5(Inch) 5 S/F L/R Inch display 170×295㎜ 3 digit *special inch specs PDF

*1 Please consult with us for special specs not listed in the above comparative rotation chart (1 rotation/0.05mm, 1 rotation/0.2mm, etc.)
*2 Five digit specifications are all shake-proof types (shake-proof case and shake-proof gear specifications) (Possible to specially change four digit to shake-proof type)
*3 Standard limit switch powered No limit switch is also possible
*4 For MTS-1300 and MTS-2800, it is possible to produce right to left drive shaft as a special specification

Switch counter (no limit switch type)

※The dimensional chart (PDF) is password protected. If you wish to view the chart, please send a request with your desired product model number using the form below.
Once we have confirmed your request, a password will be sent to the email address you provide.

Model Image Digits Drive
type
Rotation
direction
Rotation
display ratio
Height x width Set number
of digits
Notes Dimension
chart
MTS-35 MTS-35 4 S L 1 rotation/1.0㎜ 34×87㎜ None PDF
MTS-45 MTS-45 4 S L/R 1 rotation/0.1or1.0㎜ 38×68㎜ None PDF
MTS-150-4 4 S L/R 1 rotation/0.1㎜ 76×120㎜ None PDF
MTS-150-5 MTS-150-5 5 S L/R 1 rotation/0.10㎜ 76×120㎜ None

Parts attached to Die Height Counter

※The dimensional chart (PDF) is password protected. If you wish to view the chart, please send a request with your desired product model number using the form below.
Once we have confirmed your request, a password will be sent to the email address you provide.

Model Image Notes Dimension
chart
Flexible joint Flexible joint Right, Left, Both Types
*Right Reverse rotation direction when connecting *Details Dimensions in reference chart
PDF
Flexible shaft Flexible shaft We accept lengths indicated in units of 10mm
*Details Dimension reference chart
PDF
Square key Square key 80㎜,105㎜,130㎜,180㎜ standard type
*Please inquire about preparing other special dimensions

Hybrid Absolute Encoder

Model Image Notes Dimension
chart
TBA TBA TBA

Die Height Indicator Ceased Production List

Model
MTS-180 MTS-200
MTS-1600 MTS-1700
SKS-1000 SKS-1001
SKS-1002 SKS-1003
MTS-2000 ASS-404
KKM-800 Bottle counter
DB-RL-4 Rotary counter 254-30930
SNS-1035 Product meter TSDK-1003 Product meter
SYNCHRO DETECTOR Synchro goniometer
Orientation counter DB-LB-4
MS-50 transmitter OPA- Yard/mile counter
D3041070 KS-30
ST-70 NGK-118 for ships

For repair : Please inquire


Points of caution when making a repair request

1. Please tell us the machine type and press maker being used.

2. Additionally, please tell us the designated type specified by our company. (Model list/dimension reference)

3. Please tell us the present conditions and state of the item.

4. Upon checking whether or not final repair is possible, our company will inspect the product you send us and report back to you.

*Please understand that, depending on the state of the item, it is possible that repair is not possible.


Traceability of parts

Traceability of parts

At Wako Seiki, we are producing with an attention to detail that accounts for each and every work process and part, and have a strong awareness of the operational stability of our parts and the stability of the supply.
In order to carefully check each production process and conditions of the completed parts, we even provide retroactive inspection into the cause of damages or defect for each part, offering the most appropriate support.

Part name Image Details about company use
Case body Case body Shake-resistant, dust-proof, oil-proof design due to full aluminum die cast body
*For 5-digit specifications, push-in indentation to increase shake-resistance
 <Numbering hold part>
Wiring cable Wiring cable Support for safety standards Cold-proof/oil-proof specifications
(Mitsuboshi 300V soft vinyl cabtire VCT,600V soft vinyl cabtire SVCT)
Numbering Numbering Sharpened and fired with aluminum NC
With durability and shake-resistance, support against material cracking in cold locations and expansion from sudden changes in temperature
Set ring Set ring Polyester plastic processing (Thanroid PET Ace)
Not easily influenced from outside changes in temperature due to being same material as PET bottles
Support for printing numbering
Set method Set method Enameled screws (2mm) Numeric values set through tightening
Excellent level of endurance due to implementation of (ON/OFF) micro switch toggle
Gear-related Gear-related Both input shafts and master cogs are individually crafted with care by engineers,making it possible to manufacture gears for a variety of rotation ratios.
Micro switch Micro switch Omron V-15-1E6
AC250V-15A
Actuator Actuator Internal press machine part, used in over-the-shelf products by every micro switch maker
Uses independently designed and produced parts with durability and shake-resistance since use for long periods can cause defects in durability

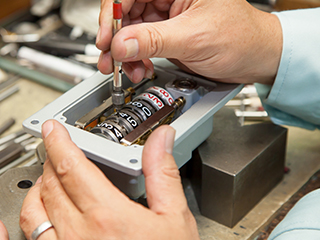

Assembly process Assembly process Excellent endurance and shake-resistance through assembly that takes into account fine adjustments of each scope of measurement (using our own standards) in dealing with the operating conditions of the micro switch and each component in the assembly process

Summary

Wako Seiki Co., Ltd.

Company name Wako Seiki Co., Ltd.
Established 5/24/1963
Capital ¥10,000,000
Representative director Masahiro Saito
Company details Indicator for press (Die Height Indicator) production and development, production of special counter scales and development
Office 2-18-35 Nikura, Wako City, Saitama Prefecture
Postal code :350-0115
Address TEL : 048-461-1073    FAX : 048-463-5376
Main banks Tokyo-Mitsubishi UFJ Bank, Sumitomo Mitsui, Resona Bank, Saitama Prefecture Credit Union

50 years as a specialized counter producer Furthering know-how and experience

Representative director Masahiro Saito

Wako Seiki Co., Ltd. was established in May, 1963 as a producer and developer of special scale counters and Die Height Indicators for press machines.
Since our establishment, we’ve received patronage from many press makers, both domestic and abroad, and I’d like to express my gratitude.
Presently, we are progressing into digital and electronics in a variety of fields.

Nevertheless, within the specialized environment of press machines, it’s our machines in particular that provide high reliability, for which I am proud.
Wako Seiki is the company that can produce products that endure extreme temperature changes and noise from vibrations and frame ground. Additionally, specifically because we are a company specializing in counters, we can respond to the needs of our clients.
Doing what we can do to help, all of our employees are devoted every day to the further advancement and development of the world’s press makers.
We await your guidance moving forward, and sincerely look forward to your support.


History

1963
Gunji Saito founds Wako Seiki Co., Ltd.
1980
Name "Die Height" born upon decision to produce prototype pieces for leading press manufacturers
1981
Activities begin as a specialized Die Height maker
1982
Continued development to support production for a variety of equipment
Die Height registered as trademark, and in 2002 registered as trademark in China
1983
Completion of shake-resistant production type for rapid press Adopted by each company
1984
Adopted as product group of Japanese press makers
1985
Development and production of special scale counter
1986
Implementation of a variety of specifications for each individual maker
1990
0.01 specification completed for every variety
2004
Masahiro Saito appointed representative director
2009
J.T.C. Shanghai business alliance on May 1st
2015
Hybrid absolute encoder is redeveloped and planned for sale

Company address


Inquiry form

Company name
Division name(not required)
Name
e-mail
Phone
ZIP code
Address
Contents of inquiry
PAGE
TOP
