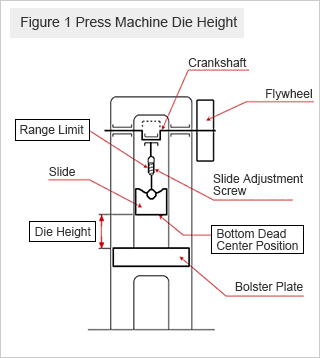

What is die height?
Die Height is the distance from the top to the bottom of the slide when the adjustment of the slide is set to the limit at the bottom dead center.
What is shut height?
Shut height is the distance from the top to the bottom of the head surface when the bolster plate is removed from the slide at the bottom dead center.
What is open height?
Open height is the distance from the bottom of the slide to the top of the bolster when the adjustment of the slide is set to the limit at the bottom dead center.
Slide adjustment amount
During metal mold mounting, the connecting rod and slide adjustment screw (connecting screw) adjust the vertical positioning of the slide.
The mounted mold’s range of motion and height is set by the amount of the adjustment.
What is a Die Height Indicator?
The Die Height Indicator is used when these adjustments are made.
The maximum and minimum settings at the time of molding are decided through this device.
1.Scope
This standard indicates the die height value (made by Wako Seiki Co., Ltd.) to be used for the press.
2.Model and variety

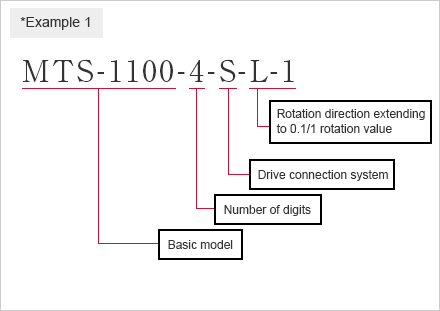

The model of the die height value is as shown, and the variety depends on the combination of the components below.
(1)Basic model
MTS-1100,1200,1300,1500,2500,2800,4500
*For AIDA specs:MTS-1100=MTS-120,MTS-1300=MTS-145,MTS-2500=MTS-190
*No limit switch type:MTS-35,MTS-45,MTS-150
(2)Drive system
| Variety based on drive connection system | Symbol |
|---|---|
| Shaft system | S |
| Flexible shaft system | F |
| Square key system | Q |
*Special S system・・・SK（with kerf）・S＋PIN（PIN attached）
(3)Rotation system
| Variety based on rotation direction | Symbol |
|---|---|
| Numbers increase from right rotation when viewed from front | R |
| Numbers increase from left rotation when viewed from front | L |
(4)Display units and number of digits
| Display units | Variety | Symbol |
|---|---|---|
| Millimeter display | 4 digits ☐☐☐.☐ | 4 |
| 5 digits ☐☐☐.☐☐ | 5 | |
| 5 digits ☐☐☐☐.☐ | 4.1 | |
| Inch display | 5 digits ☐☐.☐☐☐ | 5inch |
(5)Rotation display comparison
| Number of digits | Rotation display comparison | Model |
|---|---|---|
| 4 digits | 1 rotation 0.1 change | Standard |
| 5 digits | 1 rotation 0.10 change | Standard |
| 5 digits（4.1） | 1 rotation 0.1 change | Standard |
*Rotation display comparison ... Possible specialty specs.
(Example: 1 rotation 0.2, 1 rotation 0.05...)
(6)Rotation speed
| Model | Maximum rotation speed |
|---|---|
| MTS-1100 | 1000rpm or less |
| MTS-1200 | 1000rpm or less |
| MTS-1300 | 1000rpm or less |
| MTS-1500 | 1000rpm or less |
| MTS-2500 | 700rpm or less |
| MTS-2800 | 300rpm or less |
| MTS-4500 | 300rpm or less |
(7)Unload preset symbol
First digit is always free, two characters of the second digit are free One character of digits 3 and 4 is free and when all digits are free at the same time, the micro switch turns off.

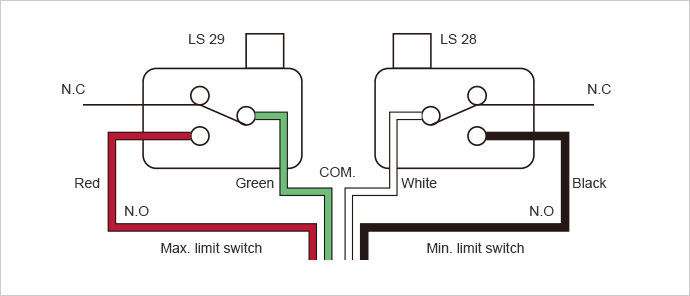

3.Circuit structure, micro switch number, wiring color
Omron V-15-1E6 AC250V-15A
Mitsuboshi 300V soft vinyl cabtire VCT
(1)Circuit structure
(2)Preset
We designate the preset value, set it in-house and deliver.
In this instance, since the preset does not take the highest and lowest structural digits, we designate values excluding these digits. The highest upper preset value is consistent with the value indicated in the chart, and the lowest value comes from subtracting one from the value indicated in the chart.
(Example）Die height400㎜/Slide adjustment, if 100mm
（400-300）displays, and device turns on at a highest limit preset symbol of 400.0, and the lowest of 299.0
| Model | Image | Digits | Drive type |
Rotation direction |
Rotation display ratio |
Height x width | Set number of digits |
Notes | Dimension chart |
|---|---|---|---|---|---|---|---|---|---|
| MTS-1100-4 | 4 | S/F/Q | L/R | 1 rotation/0.1㎜ | 90×120㎜ | 3 digit | |||
| MTS-120-4(AIDA) |  |
4 | F/Q | L/R | 1 rotation/0.1㎜ | 90×120㎜ | 3 digit | ||
| MTS-1100-5 | 5 | S/F/Q | L/R | 1 rotation/0.10㎜ | 90×120㎜ | 3 digit | *shake-proof type | ||
| MTS-120-5(AIDA) |  |
5 | F/Q | L/R | 1 rotation/0.10㎜ | 90×120㎜ | 3 digit | *shake-proof type | |
| MTS-1200-4 |  |
4 | S/F/Q | L/R | 1 rotation/0.1㎜ | 90×120㎜（70×90㎜） | 3 digit | ||
| MTS-1200-5 | 5 | S/F/Q | L/R | 1 rotation/0.10㎜ | 90×120㎜（70×90㎜） | 3 digit | *shake-proof type | ||
| MTS-1200-4.1 |  |
5 | S/F/Q | L/R | 1 rotation/0.1㎜ | 90×120㎜（70×90㎜） | 4 digit | *special specs | |
| MTS-1300-4 |  |
4 | S/F/Q | L/R | 1 rotation/0.1㎜ | 103×145㎜ | 3 digit | ||
| MTS-145-4(AIDA) |  |
4 | F/Q | L/R | 1 rotation/0.1㎜ | 103×145㎜ | 3 digit | ||
| MTS-1300-5 |  |
5 | S/F/Q | L/R | 1 rotation/0.10㎜ | 103×145㎜ | 3 digit | *shake-proof type | |
| MTS-145-5(AIDA) |  |
5 | F/Q | L/R | 1 rotation/0.10㎜ | 103×145㎜ | 3 digit | *shake-proof type | |
| MTS-1500-4 | 4 | S/F | L/R | 1 rotation/0.1㎜ | 103×180㎜ | 3 digit | |||
| MTS-1500-5 |  |
5 | S/F | L/R | 1 rotation/0.10㎜ | 103×180㎜ | 3 digit | *shake-proof type | |
| MTS-2500-4 |  |
4 | S/F/Q | L/R | 1 rotation/0.1㎜ | 139×189.5㎜ | 3 digit | ||
| MTS-190-4(AIDA) |  |
4 | F/Q | L/R | 1 rotation/0.1㎜ | 139×189.5㎜ | 3 digit | ||
| MTS-2500-5 |  |
5 | S/F/Q | L/R | 1 rotation/0.10㎜ | 139×189.5㎜ | 3 digit | *shake-proof type | |
| MTS-190-5(AIDA) | |
5 | F/Q | L/R | 1 rotation/0.1㎜ | 139×189.5㎜ | 3 digit | *shake-proof type | |

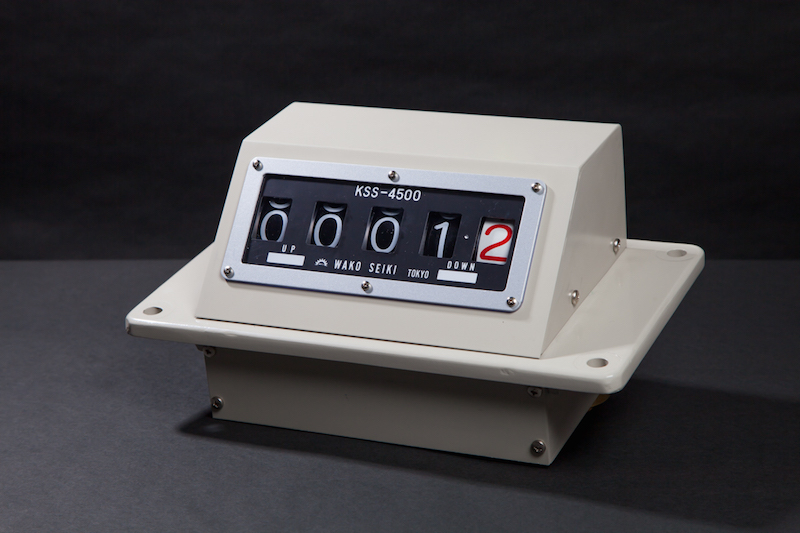

| MTS-2500-4.1 | 5 | S/F | L/R | 1 rotation/0.1㎜ | 139×189.5㎜ | 4 digit | *special specs | ||
| MTS-2500-5(Inch) |  |
5 | S/F/Q | L/R | Inch display | 139×189.5㎜ | 3 digit | *special inch specs | |
| MTS-190-5(Inch) | |
5 | F/Q | L/R | Inch display | 139×189.5㎜ | 3 digit | *special inch specs | |
| MTS-2800-5 | 5 | S/F | L/R | 1 rotation/0.10㎜ | 160×255㎜ | 3 digit | *shake-proof type | ||
| MTS-4500-4 | 4 | S/F | L/R | 1 rotation/0.1㎜ | 170×295㎜ | 3 digit | |||
| MTS-300-4(AIDA) | 4 | S/F | L/R | 1 rotation/0.1㎜ | 170×295㎜ | 3 digit | |||
| MTS-4500-5 | 5 | S/F | L/R | 1 rotation/0.10㎜ | 170×295㎜ | 3 digit | *shake-proof type | ||
| MTS-300-5(AIDA) | 5 | S/F | L/R | 1 rotation/0.10㎜ | 170×295㎜ | 3 digit | *shake-proof type | ||
| MTS-4500-4.1 |  |
5 | S/F | L/R | 1 rotation/0.1㎜ | 170×295㎜ | 4 digit | *special specs | |
| MTS-300-5(Inch) | 5 | S/F | L/R | Inch display | 170×295㎜ | 3 digit | *special inch specs | ||
| MTS-4500-5(Inch) | 5 | S/F | L/R | Inch display | 170×295㎜ | 3 digit | *special inch specs | ||
| ADM Series |  |
Mechanical counters that can be specialized, applied and customized. | |||||||
*1 Please consult with us for special specs not listed in the above comparative rotation chart (1 rotation/0.05mm, 1 rotation/0.2mm, etc.)
*2 Five digit specifications are all shake-proof types (shake-proof case and shake-proof gear specifications) (Possible to specially change four digit to shake-proof type)
*3 Standard limit switch powered No limit switch is also possible
*4 For MTS-1300 and MTS-2800, it is possible to produce right to left drive shaft as a special specification
Switch counter (no limit switch type)
| Model | Image | Digits | Drive type |
Rotation direction |
Rotation display ratio |
Height x width | Set number of digits |
Notes | Dimension chart |
|---|---|---|---|---|---|---|---|---|---|
| MTS-35 |  |
4 | S | L | 1 rotation/1.0㎜ | 34×87㎜ | None | ||
| MTS-45 |  |
4 | S | L/R | 1 rotation/0.1or1.0㎜ | 38×68㎜ | None | ||
| MTS-150-4 | 4 | S | L/R | 1 rotation/0.1㎜ | 76×120㎜ | None | |||
| MTS-150-5 |  |
5 | S | L/R | 1 rotation/0.10㎜ | 76×120㎜ | None |
Parts attached to Die Height Counter
| Model | Image | Notes | Dimension chart |
|---|---|---|---|
| Flexible joint |  |
Right, Left, Both Types *Right Reverse rotation direction when connecting *Details Dimensions in reference chart |
|
| Flexible shaft |  |
We accept lengths indicated in units of 10mm *Details Dimension reference chart |
|
| Square key |  |
80㎜,105㎜,130㎜,180㎜ standard type *Please inquire about preparing other special dimensions |
Hybrid Absolute Encoder
| Model | Image | Notes | Dimension chart |
|---|---|---|---|
| TBA | TBA | TBA |
| Model | |
|---|---|
| MTS-180 | MTS-200 |
| MTS-1600 | MTS-1700 |
| SKS-1000 | SKS-1001 |
| SKS-1002 | SKS-1003 |
| MTS-2000 | ASS-404 |
| KKM-800 | Bottle counter |
| DB-RL-4 Rotary counter | 254-30930 |
| SNS-1035 Product meter | TSDK-1003 Product meter |
| SYNCHRO DETECTOR | Synchro goniometer |
| Orientation counter | DB-LB-4 |
| MS-50 transmitter | OPA- Yard/mile counter |
| D3041070 | KS-30 |
| ST-70 | NGK-118 for ships |
For repair : Please inquire
